Graphite PTFE Packing


Graphite PTFE Packing Combines the High-Temperature Resistance of Graphite with the Chemical Resistance of PTFE. This Combination Makes These Braided Packing Versatile Products for Pumps and Valves, As Well As for Rotating Equipment Such As Mixers and Stirrers. in Addition, Graphite Braided Packing Are Well Suited for Sub-optimal Mechanical Conditions, Including the Presence of Axial or Elliptical Shafts for Pumps Out, Pumps and Deflector Shafts.

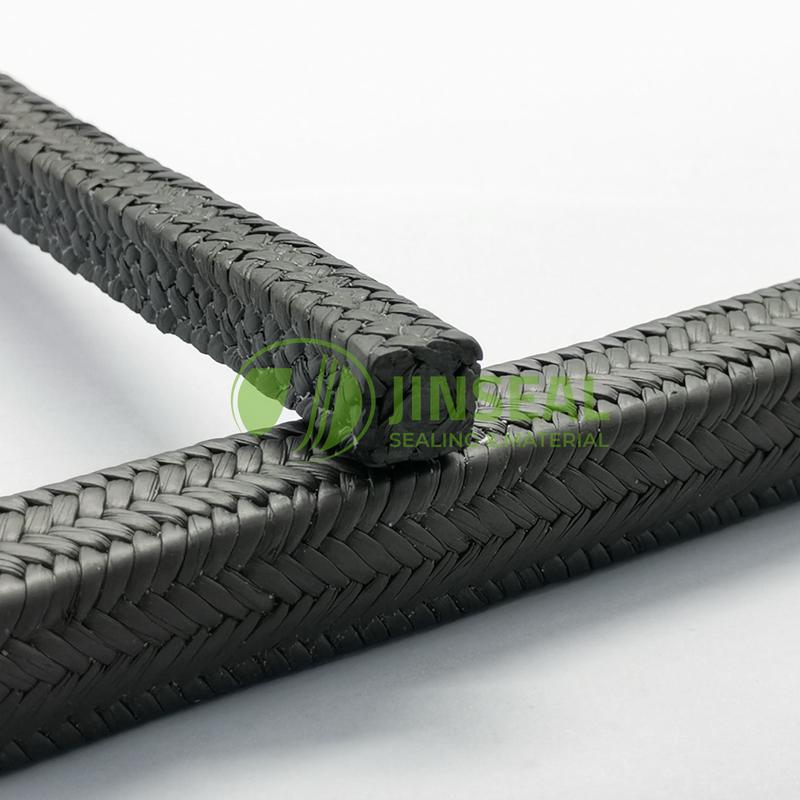

PTFE Graphite Packing

Item No.: JSP-PG10

  • Graphite/PTFE Packing is Braided with Pure PTFE Yarn

  • Universal PTFE/Graphite Extruded Packing (black)

  • Excellent Cross-Sectional Density, Self-lubricating

  • Wear Resistant but Gentle to Shaft, Absorbs Abrasive Particles

PTFE Graphite Packing with Oil Impregnated with Graphite and with Lubricant. Compared with GFO Packing, It’s an Economical Choice While Provide Almost Equivalent Performance- Leak Rate, Heat Transfer and Elevated Temperature Yarn Shrinkage.
Graphite / PTFE Packing Combines Characteristics of PTFE and Graphite Which Gives High Thermal Conductivity Compared with Pure PTFE Gland Packing. the Black PTFE Packing Provides Great Sealing Properties As Compressible, Durable, Self-lubricating, Chemical Resistant and Heat Dissipating Mechanical Sealing Parts.

PTFE Graphite Packing With Aramid Corner

Item No.: JSP-PG20

Graphite PTFE Packing with Aramid Fiber Corner Packing is a High-quality Combination of Ptfe/graphite Yarns Diagonally Braided with Corners of Aramid Fiber to Reduce Gap Extrusion. This is a Special Packing for Applications at a High-pressure Range and Simultaneous Oscillating Movements As in Plunger Pumps. The Graphite / PTFE with Aramid Corners Packing is Designed for Pump and Valve and Used in Corrosive and Abrasive Applications. It‘s Suited for Equipment Like Valves, Centrifugal, Rotary and Reciprocating Pumps, Mill Stock Pumps, Agitators or Any Other Service Where Strength and Good Lubricating Qualities Are Needed. The Gland Packing Can Be Used in Oil & Gas, Power Plants, Refineries & Petrochemical Plants, Wastewater Treatment, Sugar Plants, Pulp & Paper Industry, Marine Services. By Using This Packing, We Can Extend Shaft Life and Protect from Packing Extrusion at the Back of the Gland.

GFO Fiber Packing

Item No.: JSP-PG30

The 100% Gore GFO Fiber Package Provides Maintenance Engineers with a Consistently High-Performance General Service Package That Can Be Used for a Wide Range of Applications and Uses, Including Sealing Shafts on High-Speed Pumps, Mixers, Agitators or Any Other Equipment with Rotating or Reciprocating Shafts. They Do Not Become Hard or Brittle, Are Temperature and Chemically Resistant, and Are Easy to Install and Remove.

Item No. JSP-PG10 JSP-PG20 Item No. JSP-PT10   JSP-PT20
Fiber Material PTFE PTFE Aramid
Additions Graphite PTFE  PH 0-14 0-14
Lubricating Agent Silicone Free Yes Yes  Pressure P (Bar) Rotary Pumps  10
Density (g/cm³) 1.6 1.5 Pressure P (Bar) Piston Pumps   280
T Min. (°C) -100 -100 Pressure P (Bar) Valves   25
T Max. (°C) 280 280 Speed (M/S) 10 2

About Gore GFO Packing Data Sheet, please visit to get more detials.
