Ring Joint Gasket

Octagonal Ring Gasket

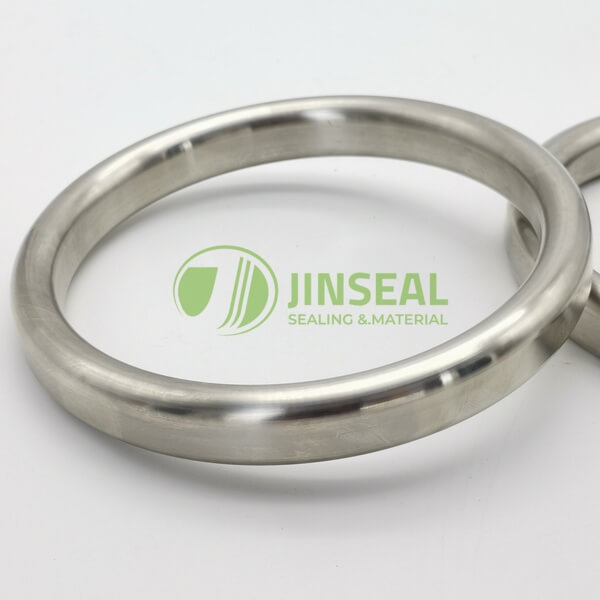

Oval RTJ Gasket

Ring Joint Gasket

Types:
R | RX | BX | SRX | SBX
Applicaiton:
RTJ | Tongue and Groove Flange
Material:
Carbon | Soft Iron | Stainless Steel
Standard:
API | ASME B16.20

Ring Joint Gaskets Are Widely Used in Refinery, Petrochemical And Oil Field Dilling Industries. and the Rings Are Generally Used For High Pressure and High-temperature Applications. JinSeal RTJ Flange Gasket is Manufactured in Accordance With API- 6A, API 17D, and ASME B16.20 Specifications AndComes in Six Basic Profiles: R Oval, R Octagonal, RX, and BX, SRX, SBX.


China Ring Joint Gasket Manufacturer with High Performance and Affordable Price.
JinSeal Ring Type Joints Are a Kind of Forged Ring Which Will Be Installed into the Machined Groove of an Rtj Flange. After Tightening the Bolts, the Ring Joints Will Be Compressed Between The Flanges into the Grooves and the Rings Will Give an Efficient Sealing Function After Deforming. in This Way, the Metals Material for the API Ring Gaskets is Typically Chosen to Be Softer Than the Flange Material in Order to Prevent Any Damages to The Flanges.

Type R ( Oval/ Octagonal )

Item No.: JSG - RJR1 / JSG- RJR2

R Type Ring Gaskets Are Manufactured in Accordance with Asme B16.20 Followed with Asme B16.5 Flanges, Class 150 to 2500. They Are Designed for Sealing Pressure Up to 6,250 Psi According to Asme B16.5 Pressure Ratings.
R Series Gaskets Are Available in Ring Numbers R11 Up to R105, JinSeal Also Can Provide Customized R Type Rtjs with Drawings.

R Style As the Basic Type of RTJ Gasket is Available in Both Oval and Octagonal Configurations, the Octagonal Type is Recommended in Higher Sealing Efficiency, Both Types Are Interchangeable on Modern Octagonal Type Grooved Flanges. However, Only the Oval Cross-Section Can Be Used in the Old Type Round Bottom Groove As the Oval Type Ring Joints Are the Original Type of RTJS.

Type RX

Item No.: JSG - RJRX

JinSeal Rx Ring Type Joints Are Similar in the Shape of Octagonal Ring Gasket, While the Rx Type Rings’ Cross Section is Designed to Take Advantage of the Contained Fluid Pressure in Effecting a Seal. Rx Ring Joint Gaskets Are Also Manufactured According to API 6A, ASME B16.20. the Ring Type Joints Are Used at Pressures Up to 15000 Psi, and the Rx Type is Wider Than R Type Joints in This Way the Flange Face to Face Separation Will Be Higher Compared with the R Type Gaskets.

RX is a Pressure- Energized Adaptation of the Standard Style R Gasket. the Modified Design Uses a Pressure - Energized Effect That Improves the Efficiency of the Seal As the Internal Pressure of the System Increases.

Type BX

Item No.: JSG - RJ BX

BX Type Ring Joint Gaskets Are Engineered for the Highest Pressure Ratings Up to 20,000 Psi Compared with R Type & Rx Type Ring Joints. They Cannot Be Interchangeable with Any Other Types Like R Type or Rx Type. It is a Typically Solution Required by a Special Arrangement. Blowout Resistant, Opening in the Axial Direction Give the Bx Type Ring Type Joint Gaskets the Function of Balancing the Pressure Loads in the Situation when the Inner Sealing Barrier is Not Tight. BX Ring Gaskets Are Manufactured Only in the Dimension Standards to NPS 30.

BX Pressure Energized Gaskets Are Manufactured in Accordance with API 6a and Are Designed for Use on Pressurized Systems Up to 20, 000 Psi. on Both the Inner and Outer Diameters, All Bx Gaskets Incorporate a Pressure Balance Hole to Ensure Equalization of Pressure That May Be Trapped in the Grooves.

Type SBX  / SRX

Item No.: JSG - RJ SBX/ RT SRX

Type SRX and SBX Gaskets Are Manufactured As Per Api 17d for Subsea Environment and Tree Equipment Are Vented to Prevent Pressure Lock when Connections Are Made Up Underwater. They Have the Same Dimensions As Type RX & BX Ring Joint Gasket with the Same Number Designation, and Also They Are Suitable for the Same Corresponding Connectors. the "s" Prefix Shows These Gaskets Have Vent Holes, Allowing a Pressure Less when Under Water. with the Vent Holes, Any Water Trapped Between a Ring Groove Bottom and the Sealing Area of the Gasket Can Escape to the Equipment I.D. Bore.

JinSeal RTJ Gaskets Are Designed to Seal by "initial Line Contact" or Wedging Action Between the Mating Flange and the Gasket. It is Essential to Choose a Softer Metal of the Gaskets While the Flange’s Material Should Be Harder to Make Sure the Ring Type Joints Can Give a Very Tight and Efficient Seal After Applying Pressure on the Sealing Interface Through Bolt Force. Usually the Ring Gaskets Are Used in Oil, Petroleum and Chemical Process Fields. As Precision Machined, Metallic Sealing Rings, Ring Joints Are Suitable for High Pressure and High-Temperature Applications.

Material

There’s a Variety of Material Can Be Selected for a Ring Gasket According to Different Application.

Material

 Identification

 Material No.

 Hardness

 Temperature (°C)

 Density

Min

Max.

(gr/cm2)

Soft Iron

D

90

-40

500

7.85

Low Carbon Steel

S

120

-40

500

7.85

Stainless Steel 304

304SS

1.4301

160

-250

550

7.9

 Stainless Steel 304L

304L SS

1.4306

160

-250

550

7.9

Stainless Steel 316

316SS

1.4401

160

-100

550

7.9

Stainless Steel 316L

316L SS

1.4404

160

-100

550

7.9

Stainless Steel 321

321SS

1.4541

160

-250

550

7.9

Stainless Steel 347

347SS

1.445

160

-250

500

7.9

Stainless Steel 410

410SS

1.4

170

-20

850

7.8

Aluminum

Al

3.0255

30

-250

300

2.71

Copper

Cu

2.009

ca.80

-250

400

8.9

Brass

CuZn37

2.0321

ca.60

-100

350

8.5

Nickel 200

Ni200

2.4066

110

-250

600

8.9

Monel 400

400

2.436

150

-125

600

8.8

Inconel 600

600

2.4816

150

-100

950

8.4

Hastelloy B2

B2

2.4617

230

-200

450

9.2

Titanium

Ti

3.7025

ca.215

-250

350

4.5

Marking and Identification (standard):

The Outer Surface of Each Ring Type Joint Should Show the

  • Manufacturer’s Name or a Trademark,

  • Gasket Numbers Like R67, RX37 or BX155

  • Gasket’s Material in Abbreviation

  • Standards ASME B16.20, API 6A, API 17D, etc.
